720P_960P_1080P  Waterproof Side View car  Camera  CM03
720P_960P_1080P  Waterproof Side View car  Camera  CM03

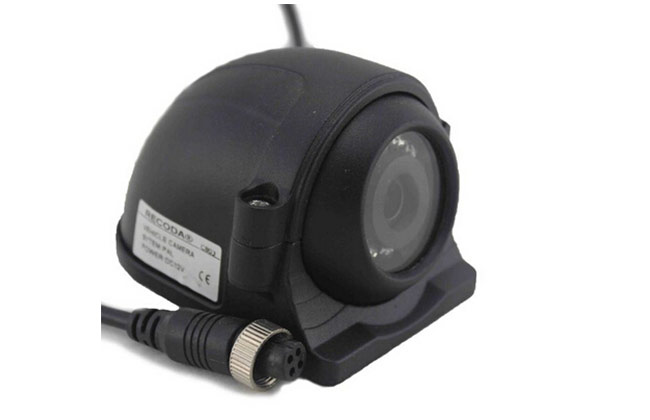

720P/960P/1080P Waterproof Side View Car Camera CM03

Features of 720P/960P/1080P Waterproof Side View Car Camera CM03


  • IR Day/night inside/side view camera

  • 1/3"  CMOS Sensor AR 0130/sony323

  • IP67 waterproof and vandal-proof

  • Angle pan/tilt adjustable

  • Resolutions: 960P/1080p

  • Lens optional: 2.8/3.6/6.0mm

  • 12pcs LEDs, vision range of 8m

  • DC 12V

Specifications of 720P/960P/1080P Waterproof Side View Car Camera CM03


Model

CM03-AHD130

CM03-AHD200

Pick up Device

1/3" CMOS Sensor AR 0130

1/3” CMOS Sensor SONY323

TV System

PAL/NTSC(OPTIONAL)

PAL/NTSC(OPTIOAL)

Effective Pixel

1280Hx960V

1920H x 1080 V

Sensitivity

0 lux (IR LEDs On)

0 Lux (LED on)

Scanning System

progressive scan RGB CMOS

progressive scan RGB CMOS

Synchronization

Internal

Internal

Infrared Spectrum

850nm or 940nm

850nm or 940 nm

S/N Ratio

More than 50dB(AGC Off)

More than 50 dB, (AGC Off)

Noise Redution

3D

Auto

Auto Gain Control (AGC)

Auto

Auto

Electronic Shutter

Auto

Auto

Back Light Compensation

Auto

Auto

Infrared LED

12 LEDs

12LEDs

Infrared LED Range

8m

8 Meters

Video Output

AHD 1 Vp-p, P 75Ω

AHD 1 Vp-p, 75Ω,

Gamma Ratio

0.45

N/A

Lens

6.0mm/3.6mm/2.8mm MP LENS

6.0mm/3.6mm/2.8mm MP LENS

Power Supply

12V DC ±10%

12V DC ±10%

Power Consumption

110mA

120mA

Dimensions (ø X H)

83(L) X60(W) x55(H) MM

83(L) X60(W) x55(H) MM

Net Weight

250g

250g

Weatherproof/Water Proof

IP67

IP67

Operating Temperature

-20°C to +65°C

-20°C to +65°C
