 1/3 Inch DSP Color Dome AHD Camera

1/3 inch DSP Color Dome AHD Camera

This is a high quality AHD (Analog High Definition ) Color camera, using the latest CMOS technology, the camera can produce high definition images with little distortion.


Analog High Definition is a high video definition standard, through the coaxial cable, using the analog modulation technology to transfer progressive-scan HD Video signal. AHD system is the same as a traditional analog system, using a common 75-3 coaxial cable to carry out as far as 500 meters of HD video without any video signal loss.

Cautions of 1/3 Inch DSP Color Dome AHD Camera


  • In order to protect the camera, please avoid placing or using the camera under direct sunlight.

  • Please ensure that the input voltage range is within the specifications.

  • Please do not place the camera in a location with a temperature exceeding 50ºC.

  • Do not attempt to service the camera by yourself. Please refer all services to qualified dealers.



Packing list of 1/3 Inch DSP Color Dome AHD Camera


  • Camera       1

  • Instruction Manual       1

  • Mounting Screw       4

  • M2.5 Hex Screw               1



Operation procedures of 1/3 Inch DSP Color Dome AHD Camera




Fig.1




Fig.2


  • Use the Torx-key supplied (1) to loosen the Torx-type screw (3) then unscrew the top cover (2).

  • Attached is the mounting base (4) to the wall or ceiling, Use the supplied screw (3) to fix the camera in position ~ a firm mounting surface is essential for a stable installation.

  • Connect the DC jack to 12VDC and connect the BNC jack to a video output.

  • Adjust camera position by loosening the inner knurled ring (6), adjust the focus sharpness by loosening the focus-lock screw (5).



Fig.1 shows the camera flush-mounted eg. on a ceiling tile, where the surface can be bored to accommodated the back of the camera housing(4).


Fig.2 shows the method for panning and tilting the camera. Loosen the locked ring (6) and position the camera as required.





Specifications of 1/3 Inch DSP Color Dome AHD Camera


Model

CM07-AHD 1.3MP

Pick up Device

1/3” CMOS Sensor AR0130

TV System

PAL

Picture Elements

1280(H)*960(V)

Effective pixels

1.3M pixels

Day-night mode

External control (default) / Auto / color / black and white

Infrared Spectrum

N/A

S/N Ratio

More Than 44 dB, (AGC Off)

Auto Gain Control

Auto

White Balance

Auto

Electronic Shutter

AUTO/ 1/50(1/60)-1/100,000sec

Back Light Compensation

Auto

Infrared LED

N/A

Infrared LED Range

N/A

Video output

1 Vp-p, 75ΩComposite, 4 ways Din Jack

Audio Output

N/A

Mirror

N/A

Lens

Standard f3.6mm Fixed Megapixel Lens

Lens Mount

M12XP0.5mm Thread

Pan Adjusting

+/-180 Degree

Tilt Adjusting

0-62 Degree

Video footage to take up space

1min≈32MB

Power Supply

12V DC ±10%

Power Consumption

150mA

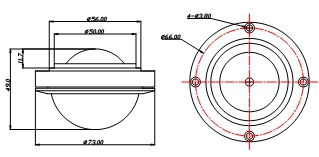

Dimensions(L x W x H)

73 x 58 mm

Net Weight

168 g

Weatherproof

IP67

Operating Temperature

-20°C to +50°C

*Specifications are subject to change without prior notice.

● Input voltage exceeding the nominal rating by over +/-10% will cause abnormal operation.
