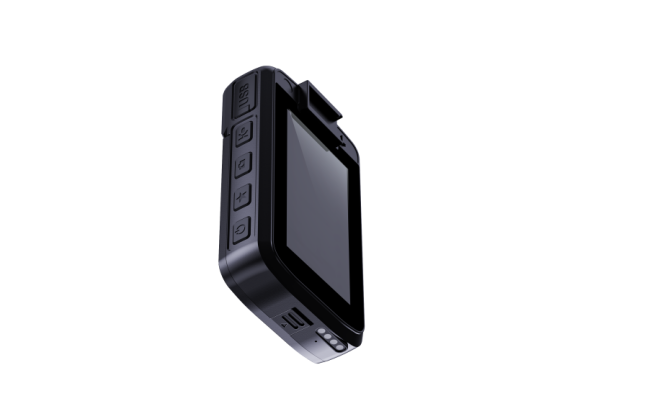

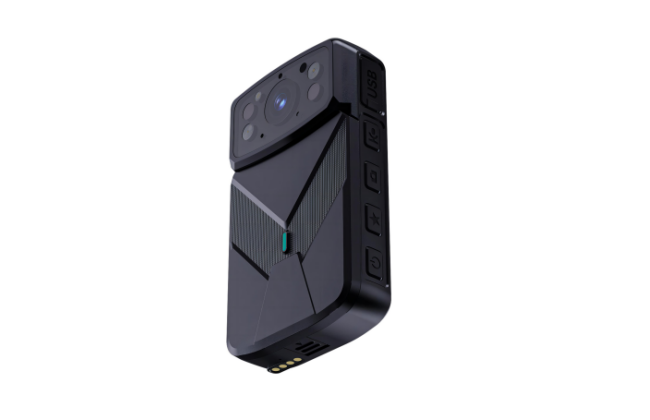

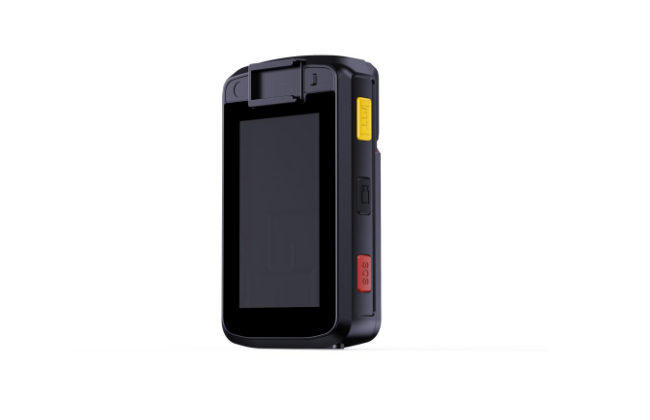

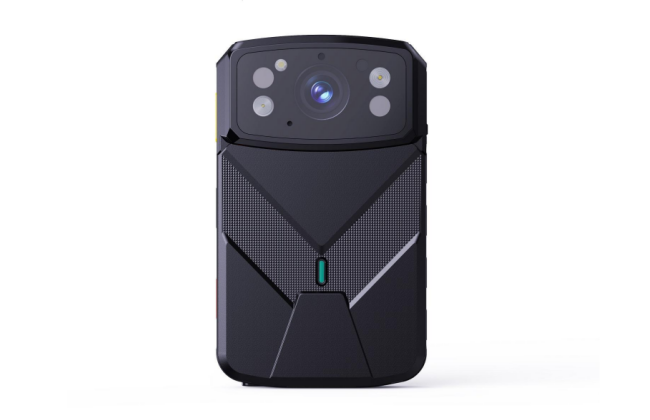

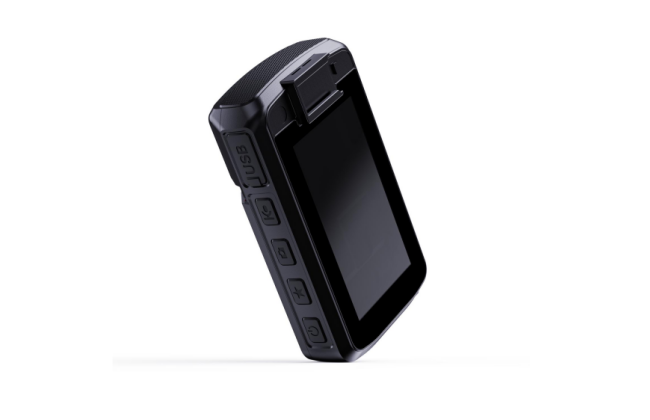

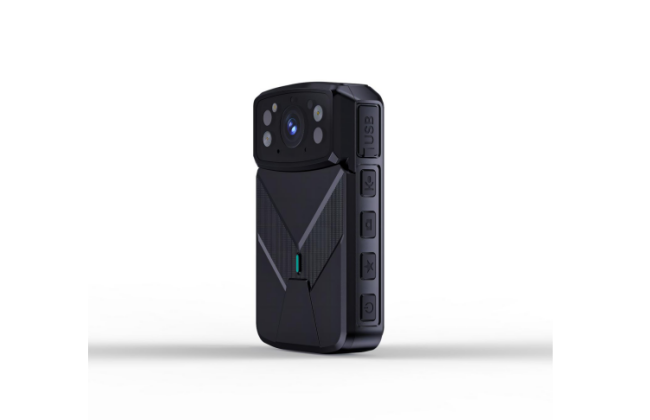

4G AI Body Worn Camera M530

1.High performance code technology: H.265

2.2K HD recording with anti-shake technology :2560*1440 30P

3.2X 3200 MAH Replaceable batteries

4.Face Recognition optional

5.License Plate Recognition optional

6.With 4G, GPS, WIFI optional

7.AES 256 Encryption

8.Group talking

9.Easy access buttons for recording audio, video, image capture and PTT

Details of 4G Body Worn Camera M530











Specifications of 4G Body Worn Camera M530


Model                                 M530G4W

System

Android 12

Storage

System Memory

32GB+3GB (64GB+4GB optional)

TF-Card

16-256GB

Processor

CPU

MTK6769

Camera

Sensor

Sony 335

Front Camera

5MP

Rear camera

2MP

Lights

Infrared Lamp

Support, 2

White light

Support

Laser lamp

Support

Work light

Support

Protection Grade

IP Grade

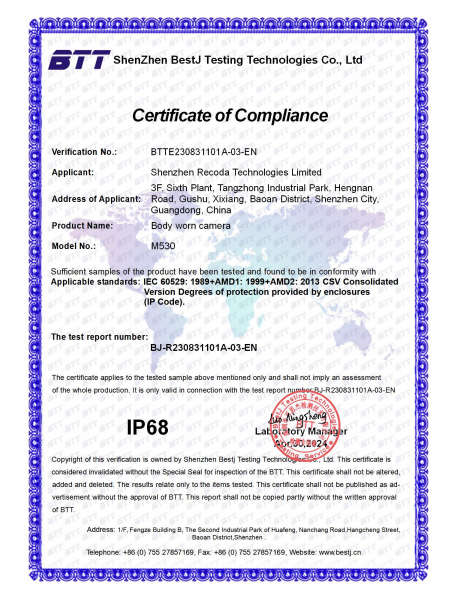

IP68

Anti-Drop

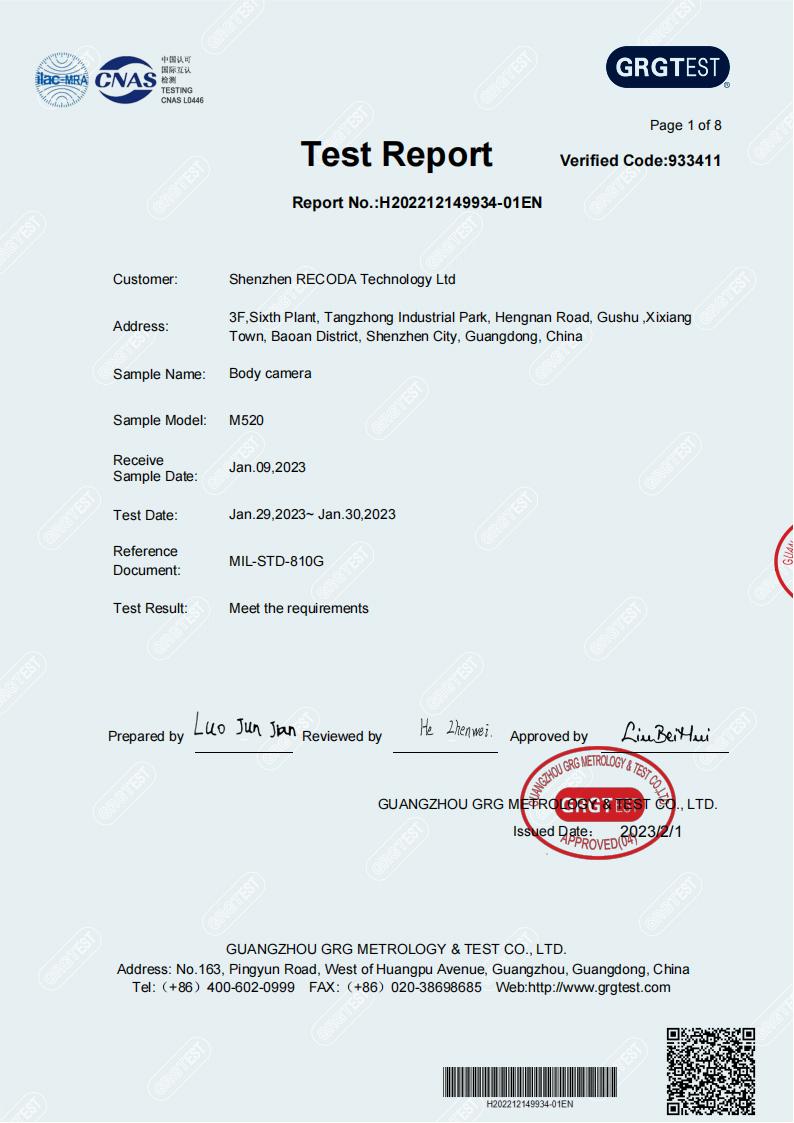

2 meters ( MIL-STD-810G )

Display

LCD

TFT 3.1 inch touch screen with resolution of 480*800

Touchable

Support

Language

English and  Chinese or  customized

Device watermark

Device ID, latitude and longitude, time and date

Video parameters

Recording Resolution

@30fps (2560*1440,2340*1296,1920*1080 ,1280*720,720*480)

Image Resolution

Maximum Support 2560*1920

Video Coding

H.265/H.264

Video Encryption

AES256

Video Format

MP4

Audio Format

AAC & MP3

Photo Format

JPEG

One button record       &Turn on by

recording key

Support

Snapshot

Support during recording

Recording clips

1/5/10/15/20/25/30min

Pre-Event Recording

0/30/60/120/180 s

Post Event Recording

0-180 s

IR Switch

Auto/Manual

IR Distance

10 meters with clear image or video at 6 meters

Wireless Parameters

4G LTE

FDD

GSM:3、5、8

WCDMA:1、4、5、8

TD:34、39

FDD-LTE:1、3、4、5、7、8、20、28

TDD:38、39、40、41

WIFI

802.11b/g/n/ac,AP/Station Mode

GPS

GPS+AGPS+Glonass, Beidou(Optional)

Bluetooth

Support Bluetooth4.0

NFC

Optional

Data Interface

TYPE-C,USB2.0,Wireless(4G, WIFI, Bluetooth) to CMS or station

Mic & Speaker

Front microphone, Bottom noise reduction microphone & Speaker (1.5 W)

Performance

Battery

Replaceable  3200 MAH

Working Time

≥10h(turn on recording @1080p)

Charging Time

3Hours

Working Temperature

﹣20℃ ~ ﹢60℃

Vehicle bracket

Optional

Battery

Optional(Default one battery)

Clip

360°rotatable metal clip

Size

100 mm *60 mm *26mm

Net Weight

166g

Accessories

USB charging cable, charger, long and short clips, base
