1080P WDR Dual Car Camera With Audio Optional RCDP78

1080P WDR Dual Car Camera With Audio Optional RCDP7B

This is a high-quality AHD (Analog High Definition ) Color camera, using the latest CMOS technology, the camera can produce high-definition images with little distortion.


Analog High Definition is a high video definition standard, through the coaxial cable, using the analog modulation technology to transfer progressive-scan HD Video signal. AHD system is the same as traditional analog system, using common 75-3 coaxial cable to carry out as far as 500 meters of HD video without any video signal loss.

Inquire Now

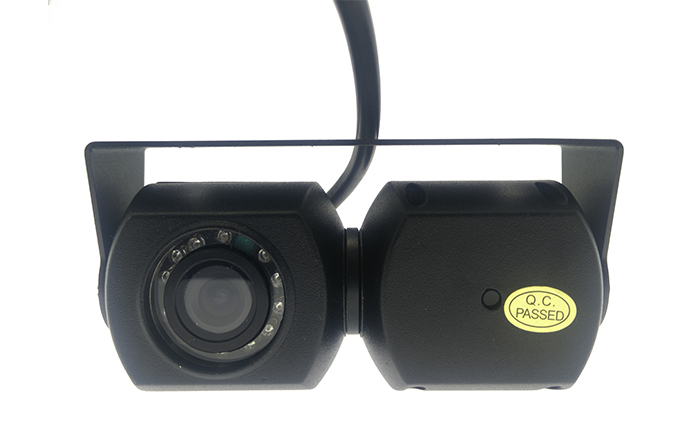

Features of 1080P WDR  Dual Car Camera With Audio Optional RCDP78


  • Mini rotatable Vehicle Camera with bracket

  • Dual Video output

  • Provide the picture view outside and cabin inside at the same time

  • Double camera: Either of them is Rotatable provide a flexible viewing angle

  • Night Vision: 12pcs IR Lights available for selection

  • Random combinations:

        IR camera+ no IR camera

        IR camera+ IR camera

        no IR camera+ no IR camera

  • Flexible resolution TV Line available for selection

  • Easy installation

  • Inseparable

Specifications of 1080P WDR  Dual Car Camera With Audio Optional RCDP78


Model: RCDP7B-AHD200

CAM-1

CAM-2

Pick up Device

1/2.9" CMOS Sensor SONY322

TV System

PAL

Picture Elements

1960(H)*1080(V)

Effective pixels

2.0M pixels

Infrared Spectrum

850nm

N/A

S/N Ratio

More than44 dB, (AGC Off)

Auto Gain Control

Auto

White Balance

Auto

Electronic Shutter

AUTO/ 1/50（1/60）-1/100,000sec

Back Light Compensation

Auto

Infrared LED

12 LEDs

N/A

Infrared LED Range

8 m

N/A

Video output

1 Vp-p, 75Ω composite, 4 ways Din jack x1

Audio Output

N/A

4 ways Din Jack

Mirror

Available

Power Consumption

120mA

80mA

Lens

Standard f3.6mm Fixed Megapixel Lens

Standard f3.6mm Fixed Megapixel

Lens

Lens Mount

M12XP0.5mm Thread

Power Supply

12V DC ±10%

Dimensions(L x W x H)

76.4 x 60.5 x 56mm

Net Weight

260g

Weatherproof

N/A

Operating Temperature

-10°C to +50°C
