1、HD video support: 2304 * 1296 ,1920 * 1080, 1280 * 720,848*480
2、Maximum effective pixel: 12 MB,4032×3024
3、Built-in 2350 MAH battery ,10 hours recording time in 720P resolution
4、The lens angle is more than 140 degrees
5、Built-in 2 large power external night vision lights, 10 meters to see the face
6、With LED white light, can be color recording at night
7、Watermark shows the device ID, officer ID, date and time
8、Support red and blue explosion flash and sound alarm
9、Support for loop video recording, car mode
10、support H.264/H.265 Video encoding
11、Support magnetic suction back clip, long back clip two wearing ways
12、The Weighs only 99 grams
13、IP65 protection grade

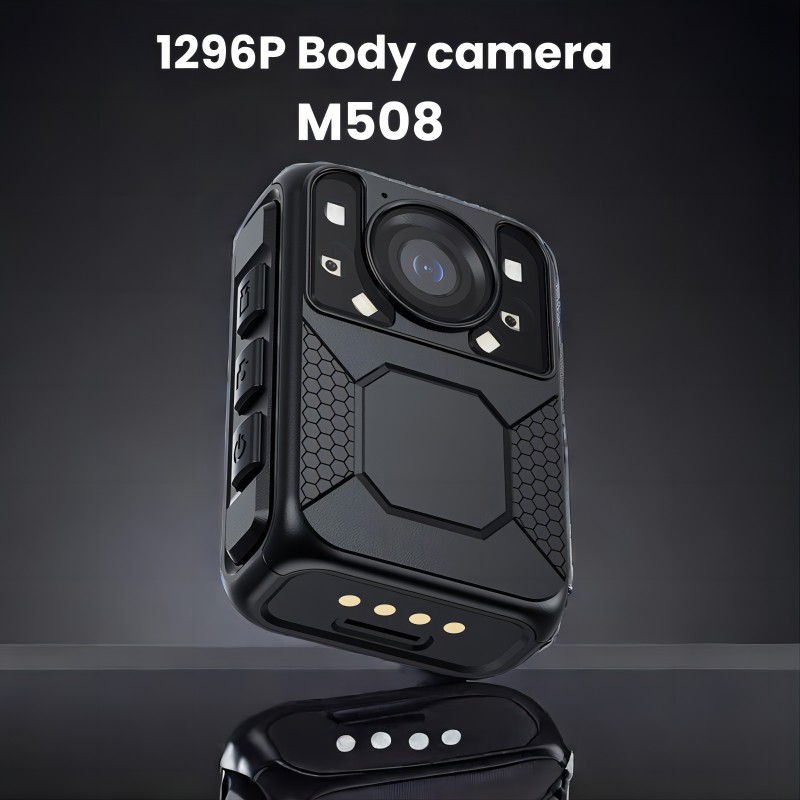

.jpg "M508-3(1).jpg")
ITEM | Parameters |
Video | |
Sensor | GC2053 /2Mega CMOS |
Pixel Size | 4032×3024(12M)/3648×2736(10M)/ 3264×2448(8M)/2592×1944(5M)/ 2048×1536(3M)/640×480(VGA) |
Resolution of video | 2304×1296/1920×1080/1280×720/848x480 |
Video Format | MP4 H.264&H.265 |
Fast forward backwards | 2X, 4X, 8X,16X |
Audio format | WAV |
Video output | Type-C |
Photo Format | JPEG |
Pre recording time | Up to 30 seconds |
Time of delay | Up to 1 minute |
Quality of video | Best/quality/standard |
Segmented time | 5min/10min/15min |
Watermark | User ID,Time and Date Stamp (and GPS) |
Camera | 2 million camera |
snapshot | Supports capturing photos during video shooting |
Memory capacity | 32G /64G/128G/256G |
One click recording | Supports one-click recording |
Infrared light Switch | Automatic/Manual |
display screen | 1.6-inch TFT-LCD HD display |
Video camera | |
Angle of view | Wide Angle 140° |
Night vision shooting | Support -- Built-in two high-intensity infrared lighting systems;You can see faces from 10 meters away |
Clip | High quality 360° rotating metal clip |
Battery | |
Type | Standard 3.8V lithium-ion polymer battery 2350mAh |
Charge duration | 4H |
Time of use | Working 10 hours at 720P |
Other | |

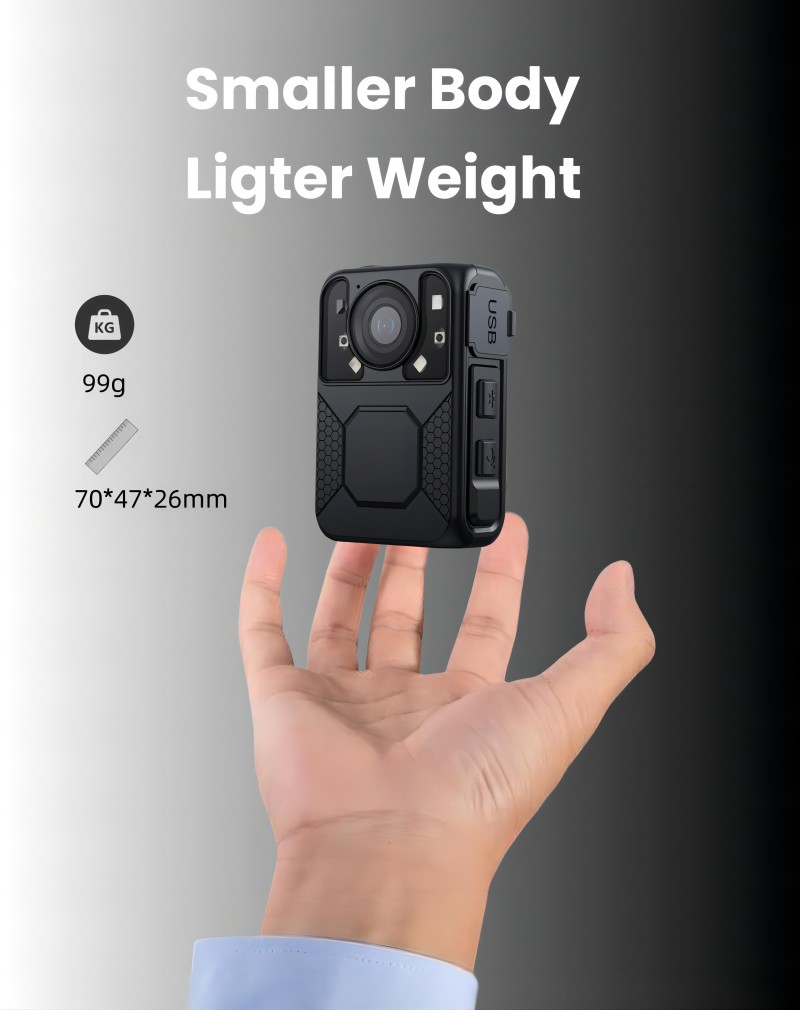

Specifications | 70mm*47mm*26mm |
Class of protection | IP65 waterproof/dust-proof / 3-meter fall proof |
Weight | 99g（5.64oz） |
