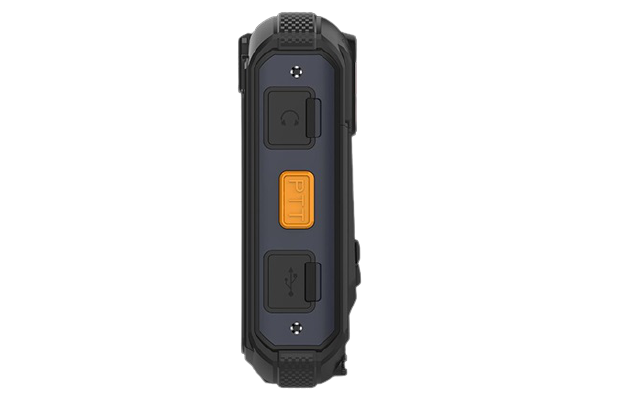

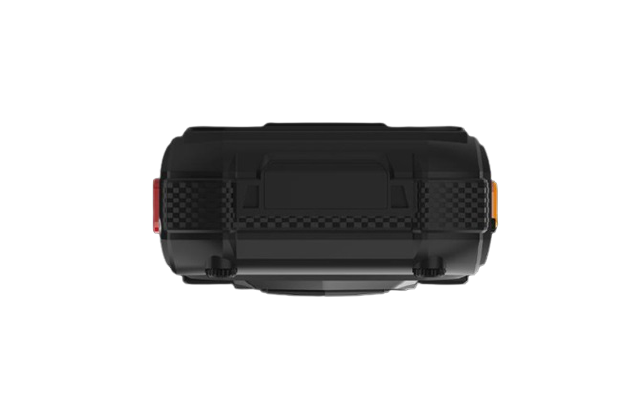

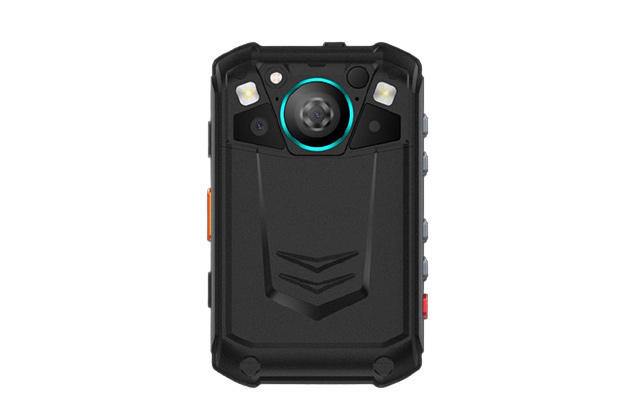

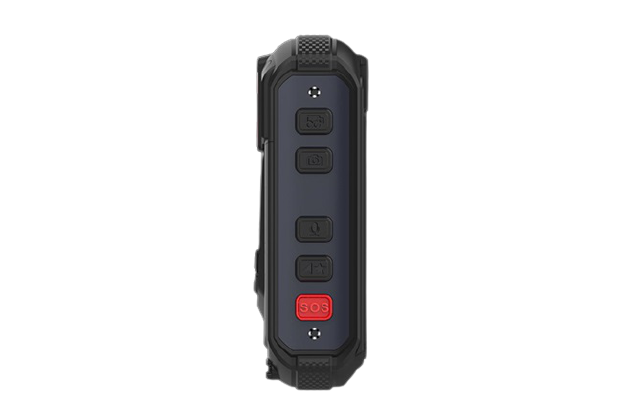

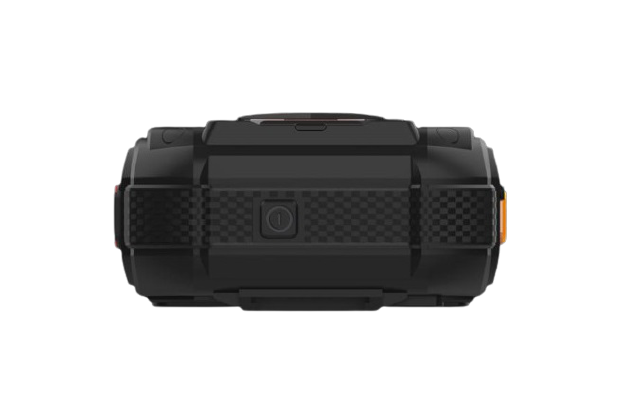

4G Body Worn Camera M503
4G Body Worn Camera M503
4G Body Worn Camera M503
4G Body Worn Camera M503
4G Body Worn Camera M503
4G Body Worn Camera M503

4G Body Worn Camera M503

Features of 4G Body-Worn Camera M503


  • H.265 CODES ,Smaller video size with same  HD quality

  • Two Repalceable  batteries.supports the replacement of the battery for 5 minutes without power failure.

  • Unique design 3 Cameras, for different  Shooting scene

  • 4G/WIFI /Bluetooth full functions

  • Support NFC near field communication function, can read ID card information


Specifications of 4G Body-Worn Camera M503



Model No

M503

1

CPU

Main frequency

2.0GHz

2

storage

RAM + ROM

2G+32G

3

TF card expansion storage

Support, the largest expansion to 128G

4

Number of card slots

2, Micro SIM slot +TF slot

5

Reliability

★IP rating

Support IP68 and IP69, dual protection level at the same time



Operating temperature

Suitable for -30℃ to 60℃



Anti-fall height

2 meters



Waterproof performance

1 meter 2 hours

6

Structure

size

≤95.8mm*65.8mm*31.8mm



weight

182g (without back clip), 214g (including back clip)

7

Screen

size

2.4 inches



Resolution

320*240



Operation mode

Support glove mode and splashing water operation



brightness

350min 380typ, Contrast1000min 1500tpy

8

Number of cameras

3 pcs

9

Pixel

★ Rear

32 million pixels



Front

32 million pixels

10

Field of view

Horizontal viewing angle 95°

11

Video recording

Video recording

Color video image, video resolution is 1920×1080, 1280×720 resolution is optional; video frame rate is 30 frames/s



Video encoding format

Support video H.264, H.265



★Macro

Support 5cm macro shooting

12

Anti-shake

support

13

Night vision

Automatic switching

Built-in ambient light detection chip, automatically switch infrared night vision



★Night vision distance

5M clearly see the contour of the face, 10M clearly see the contour of the human body



★Night vision wide angle

120°

14

White light

support

15

laser light

support

16

Positioning

Satellite positioning

Dual-frequency GPS, dual-frequency Beidou, positioning accuracy ≤ 1 meter

17

4G Band

CDMA EVDO: Bc0 (800Mhz)

GSM: B2(1900M) B3(1800M) B8(900M)

WCDMA: B1 (2100M) B5 (850M) B8 (900M)

LTE-FDD: B3(1800M) B1(2100M) B5(800M) B8(900M)

LTE-TDD: B34(2010M) B38(2600M) B39(1900M) B40(2400M) B41(2600M)

18

WLAN

Support 2.4G/5G WIFI (5.1G, 5.8G) 802.11a/b/g/n/AC

19

BT

Support Bluetooth v4.1

20

★NFC

Support NFC near field communication function, can read ID card information

21

Data interface

Micro USB, USB2.0

22

★Charging method

Support 5V 2A

23

Battery

Replaceable battery

The detachable structure design supports the replacement of the battery for 5 minutes without power failure.



capacity

3000mAh

24

High quality speaker

Built-in

25

★Operating System

Android 9
