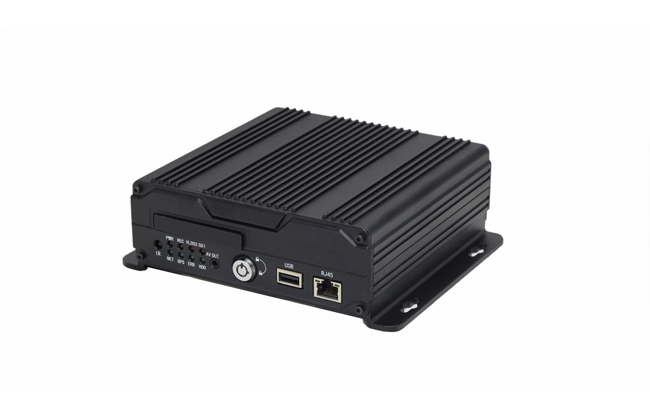

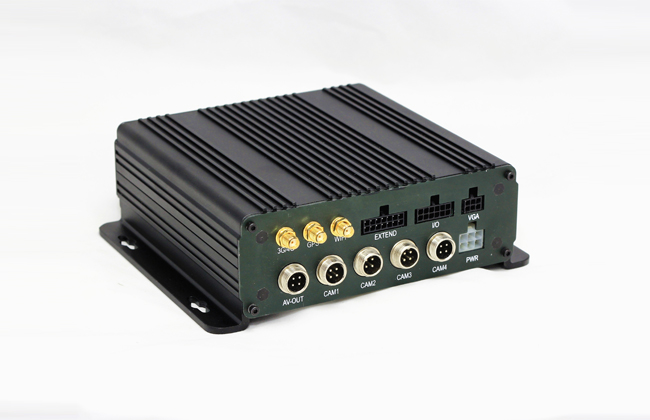

4CH 720P SD Card Mobile DVR With 4G GPS WIFI
4CH 720P mobile dvr

4CH 720P SD Card Mobile DVR With 4G GPS WIFI

1

Supports 1-4CH 720P real-time recording, AHD 720P and CVBS optional

2

Supports 2XSD cards recording (each max 256GB ), support two SD cards to mirror recording

3

Supports real-time remote viewing through 4G/3G/WIFI(optional), remote video & trace download and playback

4

Support two way talking and trunking intercom via 4G or WIFI

5

supports pre-recording for alarm events, motion detection alarm, G sensor alarm, alarm linkage, etc

6

Built-in (3G/4G Intelligent switch )、WiFi、GPS/Glonass 、G-sensor Etc

7

Car black box function, To Record important information such as speed, position, hard braking, reversing, turning, alarm, etc

Specification of 4CH 720P SD Card Mobile DVR With 4G GPS WIFI


OS

Linux

Language

English/Chinese/Customized

Video Compression

H.264 Compression

Video Record

System

Video-Input

1-4 Channels  AHD/CVBS

aviation connector, 1.0Vp-p, 75Ω

Video Onput

1 CVBS, 1.0Vp-p, 75Ω, Aviation, Support 1CH Full Screen,4CH Screen view

Resolution

720P/D1/HD1/CIF, MAX:4 channels of 720P

Image Quality

0-7 levels, 0 is the highest level.

Compression

G.726 compression, 8KB/s speed

Alarm Input

6CH Alarm Input,1CH AD Input, impulse speed input, Alarm Linkage

Alarm Output

2CH Alarm Output, Support Light/Sound alarm sensor, Oil/Power cut off

Interface

2CH RS232 to connect OBD, POS/Fuel Sensor/LED Advertisement Connection,1CH 485 Interface

4G/3G

Built-in 4G module optional, TDD-LTE, FDD-LTE, WCDMA

GPS Position

Support Built GPS/BD Module

WiFi

2.4G HZ or 5G HZ

Storage

2XSD cards recording(each max 256GB )

USB Interface

USB Interface on Front Panel for data back up by U Disk, Hard Disk

Video playback

Max support 4CH Replay /Stop/Fast/Slow at same time

Optional Functions

Support voice call each other

Support TTS voice broadcast function.

Support LED Advertisement Panel, Oil Sensor, ADAS, DSM, Car OBD, two-way talking, etc.

Voltage & Power

Wide Voltage.Support DC:+10V - +36V

+12V~1.5A,+5V~1.5A

Working Environment

-20℃ - +70℃

Others

150 (W) w 57 (H) x 168 (L) mm,

weight 1.1KG
